TIG and MIG welding | Borgoricco, PD

Processing

Laser cutting

2 TRUMPF fiber laser with storage systems, automatic loading and unloading.

Welding

Tig, Mig, Mag, 4 ABB robotic systems, 7 manual welding islands.

CNC

4 Bystronic and LVD bending machines, 2 Mazak machining centers,

molding and CNC turning.

Treatments

We rely on our certified suppliers to carry out any type of treatment.

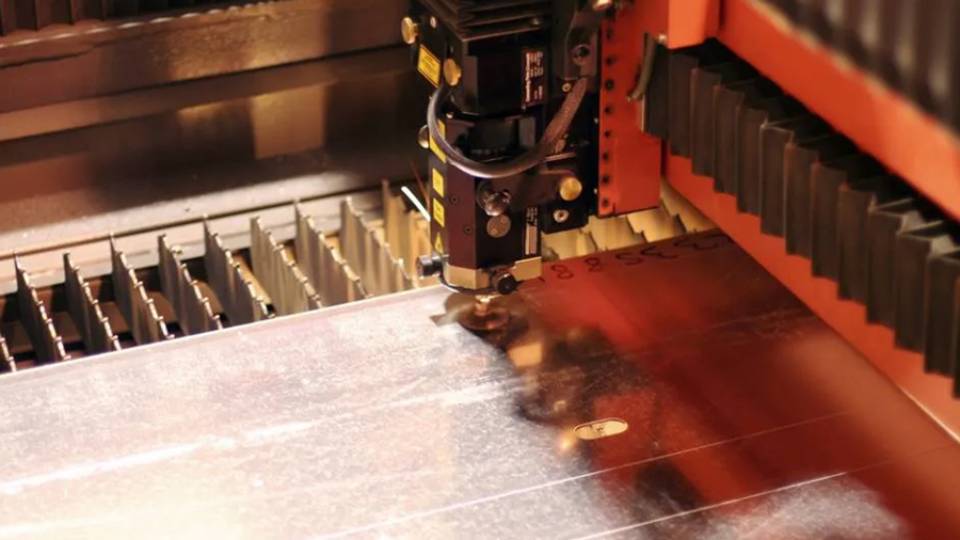

Laser cutting

The sheet metal division of Norani is able to work stainless steel and, thanks to the innovative fiber optic technology, also non-ferrous metals such as aluminum, copper, titanium and brass. Today we have 2 state-of-the-art fiber laser cutting systems and an impressive automated warehouse that allows fully automatic storage, loading and unloading.

"We are able to operate simultaneously on multiple orders, notably reducing waste

and allowing the final customer to obtain a significant economic advantage."

N. of systems	2
Brand Name	Trump card
Max. Working range	3000 mm x 1500 mm (WxD)
Workable thickness	25 mm
Options	Automated loading/unloading
Power	6kw each
Workable Materials	Carbon steel, stainless steel, copper, brass, aluminium, hardox, domex and other high-strength materials.

Cutting tubes and sections

One of the main specializations of Norani Cutting Center is the ability to work and process carbon steel, stainless steel, copper, brass and aluminum tubes and sections in a very short time.

For any type of tube and sections, Norani has a state-of-the-art system suitable for working optimally

thanks to a complete service that also includes the making of holes, slots, notches, markings, bevels and inclined cuts.

N. of systems	3
Type	Band Saw
Max. Working range	300 mm x 300 mm (WxH)
Max. Lenght	12000 mm
Options	Automated loading/unloading
Workable Materials	Carbon steel, stainless steel, copper, brass, aluminium, hardox, domex and other high-strength materials.

TIG, MIG and Robot welding

Inside the headquarters of Norani, the welding process can be both automated, with large production or perimeters, and manual. The company uses technologically advanced systems with different characteristics both for TIG, MIG and Robot welding and to operate on the widest range of metals possible, as well as on parts of various sizes. By choosing and relying on the company located in Campodarsego, you will have at your disposal a team of expert in welding sheets, tubes, sections, various iron, stainless steel, aluminum, brass, bronze, copper products and alloys of all kinds.

Thanks to 4 precision robot welding stations and 7 manual welding islands in which

licensed and specialized welders operate, Norani guarantees all its customers truly impeccable works and results.

N. of systems	4
Type	ABB
Working range	Max 1600 mm x 1600 mm x 1000 mm (WxDxH)
Workable Materials	Carbon steel, stainless steel, Hardox, domex and other high-strength materials.

N. of systems	7
Type	Ine, Cea
Options	Tig, Mig, Mag
Workable Materials	Carbon steel, stainless steel, copper, brass, aluminium, hardox, domex and other high-strength materials.

Bending, molding and shaping

By relying on its 5 state-of-art systems for bending metal sheets, Norani is also able to transforms metals through the bending of sheets, tubes and sections of different sizes.

The guaranteed accuracy and high competences of our qualified personnel are supported by advanced virtual simulation software and angle measurement and control tools. With respect to the metal molding and shaping processing, the metal cold working is performed with the use of special equipment and the molds are made in different shapes and sizes, which can be customized by each customer (or third parties) according to the specific needs. Last but not least, Carpenteria Metallica Norani also carries out metals and alloys shearing and drawing by using presses that range from 20 to 250 tons.

N. of systems	3
Brand name	Bystronic
Working range	Max 3.000 mm (W)
Load	Max 150 ton
Options	Automated angle control systems
Workable Materials	Carbon steel, stainless steel, Copper, domex and other high-strength. materials.

CNC

N. of systems	2
Brand name	Mazak
Type	5 Axis machining center
Max. working range	500 mm x 1700 mm x 700mm (WxDxH)
Workable Materials	Carbon steel, stainless steel, copper, brass, aluminium, hardox, domex.

Molding, Turning

N. of system (Form)	4
Max. working range	1200 mm x 800 mm
Load	Min 40 tons - Max 250 tons

N. of system (Drillin Machine)	6
Type	3 Radial + 3 Press

N. of system (Lathe)	4
Maximum length	2000 mm
Max. cross section	500 mm

Slide title

Write your caption here

Button

Further special processing

The range of services offered by Norani is not limited to laser cutting, welding or bending: the company located in Campodarsego, in fact, also manages and caries out numerous particular processes, such as painting, galvanizing and heat treatments. The latter are carried out in collaboration with qualified partner companies which are able to machine small as well as large parts. Lastly, customers can also contact Norani for anodizing, cataphoresis, hot dip galvanizing, chrome plating, carbonitriding and cementing.
